We've been looking for a display like this for a long time - it's only 1.5" diagonal but has a high density 220 ppi, 240x240 pixel display with full-angle viewing.
It looks a lot like the , but has 4x as many pixels and looks great at any angle. We've seen displays of this caliber used in smartwatches and small electronic devices but they've always been MIPI interface. Finally, we found one that is SPI and has a friendly display driver, so it works with any and all microcontrollers or microcomputers!

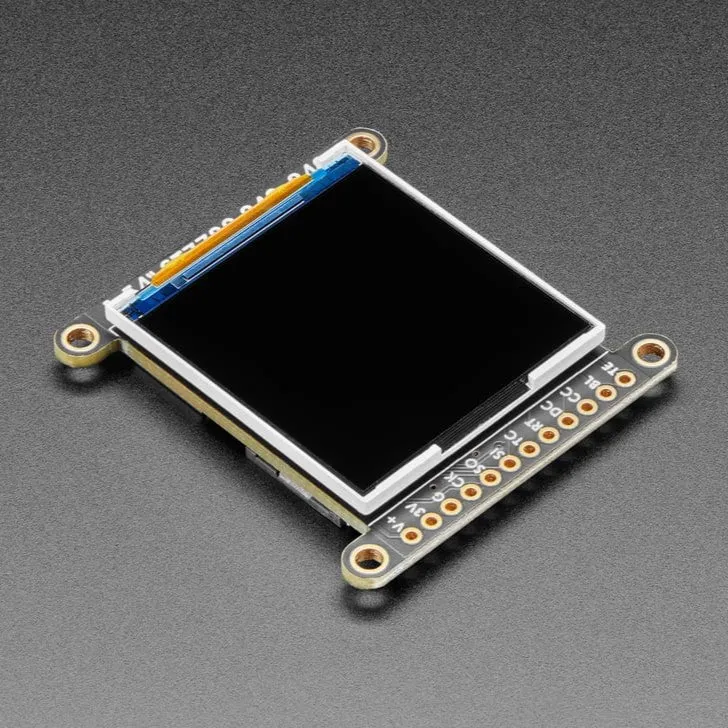

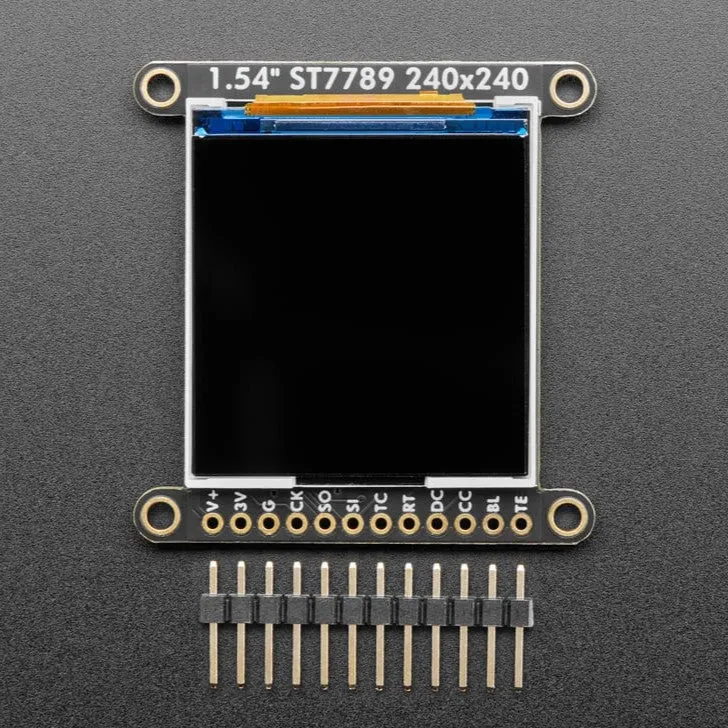

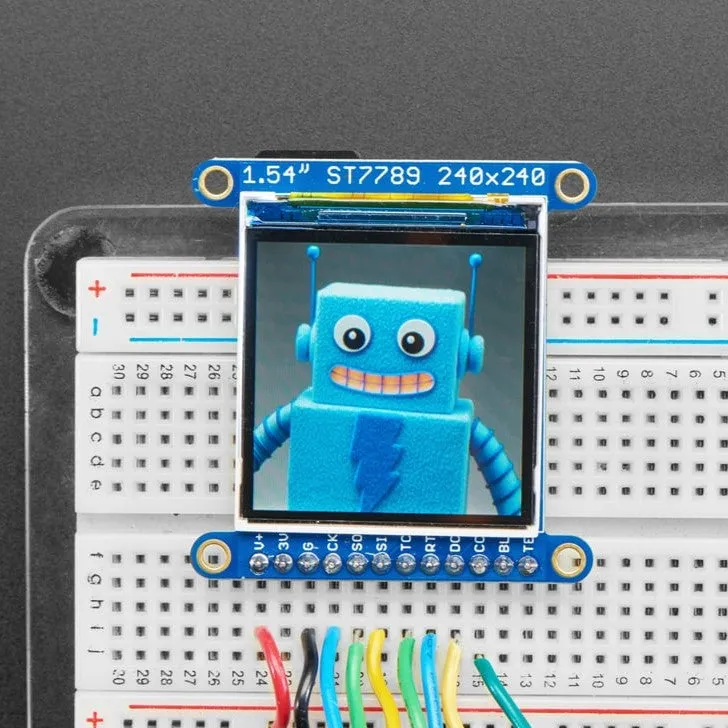

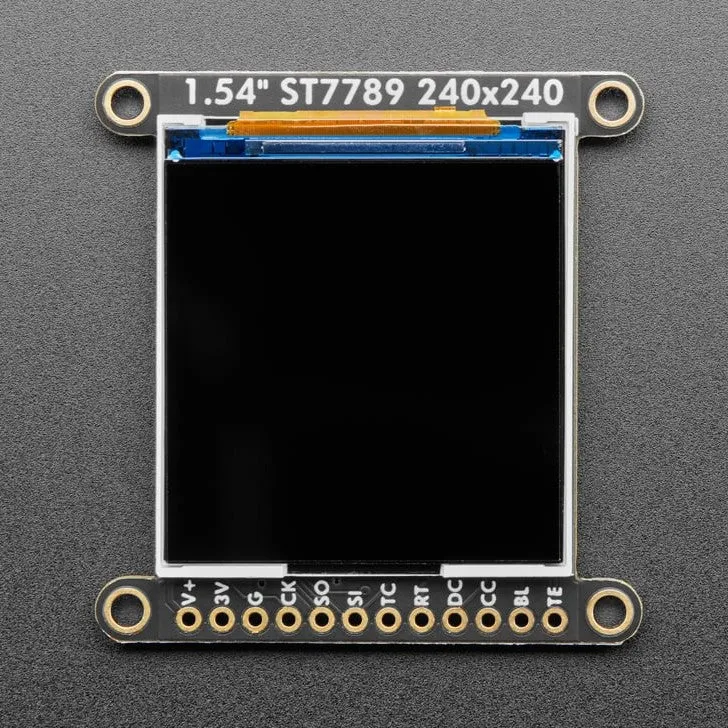

This lovely little display breakout is the best way to add a small, colorful and very bright display to any project. Since the display uses 4-wire SPI to communicate and has its own pixel-addressable frame buffer, it can be used with every kind of microcontroller. Even a very small one with low memory and few pins available! The 1.54" display has 240x240 16-bit full color pixels and is an IPS display, so the color looks great up to 80 degrees off axis in any direction. The TFT driver (ST7789) is very similar to the popular ST7735, and our Arduino library supports it well.

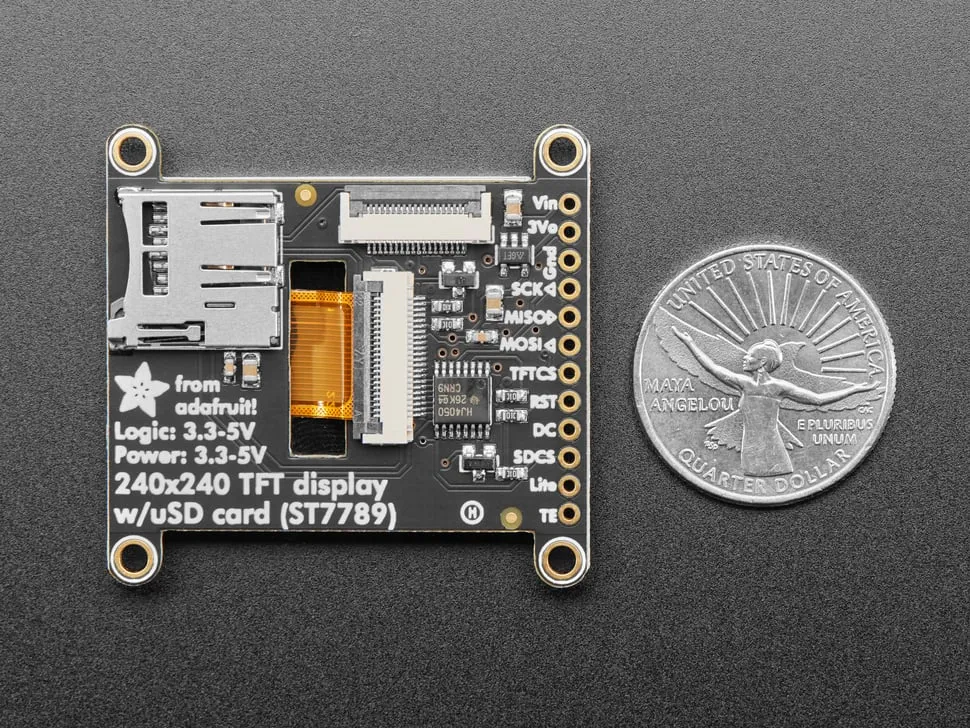

This breakout has the TFT display soldered on (it uses a delicate flex-circuit connector) as well as a ultra-low-dropout 3.3V regulator and a 3/5V level shifter so you can use it with 3.3V or 5V power and logic. There was a little space so Adafruit placed a microSD card holder so you can easily load full color bitmaps from a FAT16/FAT32 formatted microSD card. The microSD card is not included, .

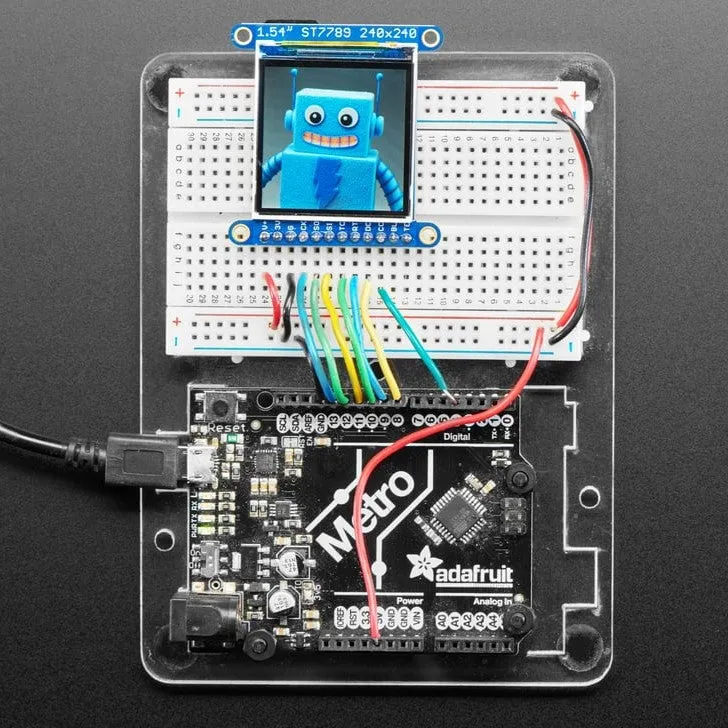

Of course, we wouldn't just leave you with a datasheet and a "good luck!" - . The code is written for Arduino but can be easily ported to your favorite microcontroller! Wiring is easy, we strongly encourage using the hardware SPI pins of your Arduino as software SPI is noticeably slower when dealing with this size display. . For .

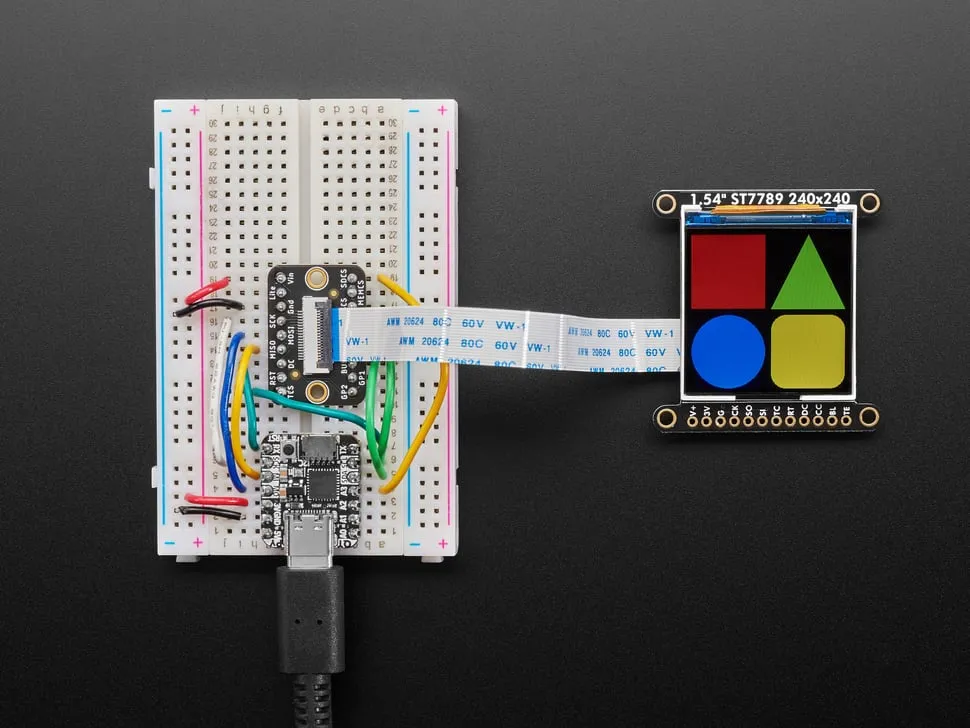

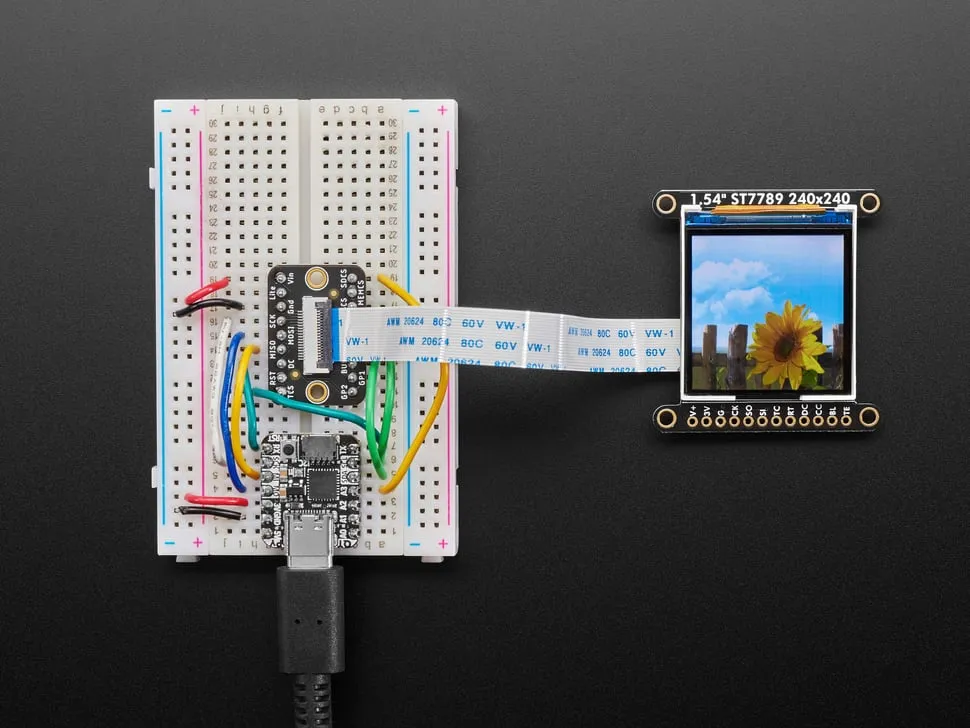

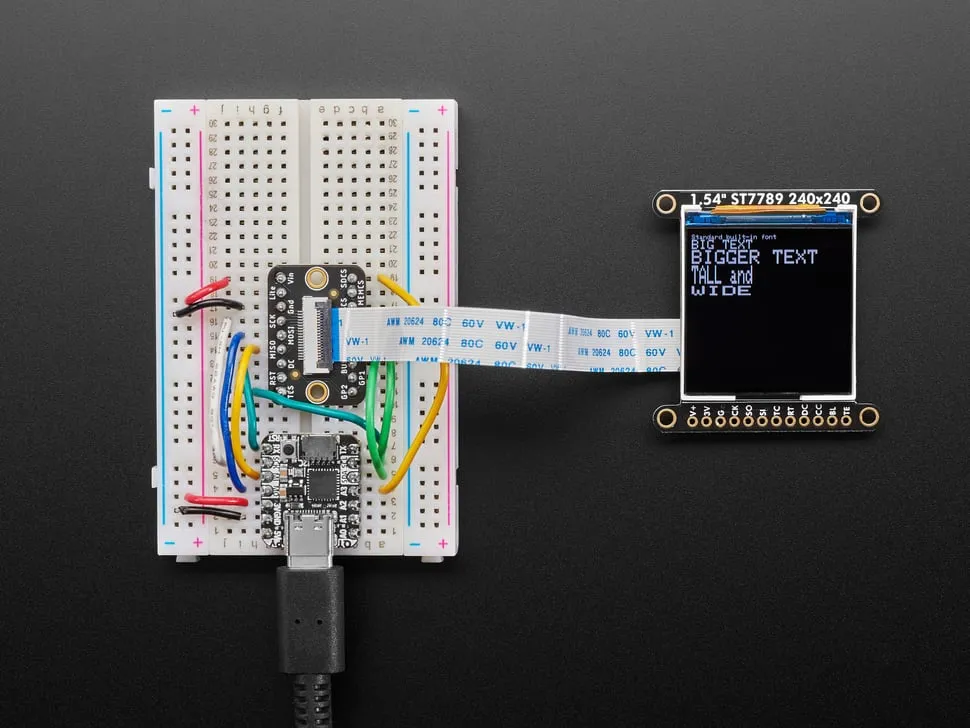

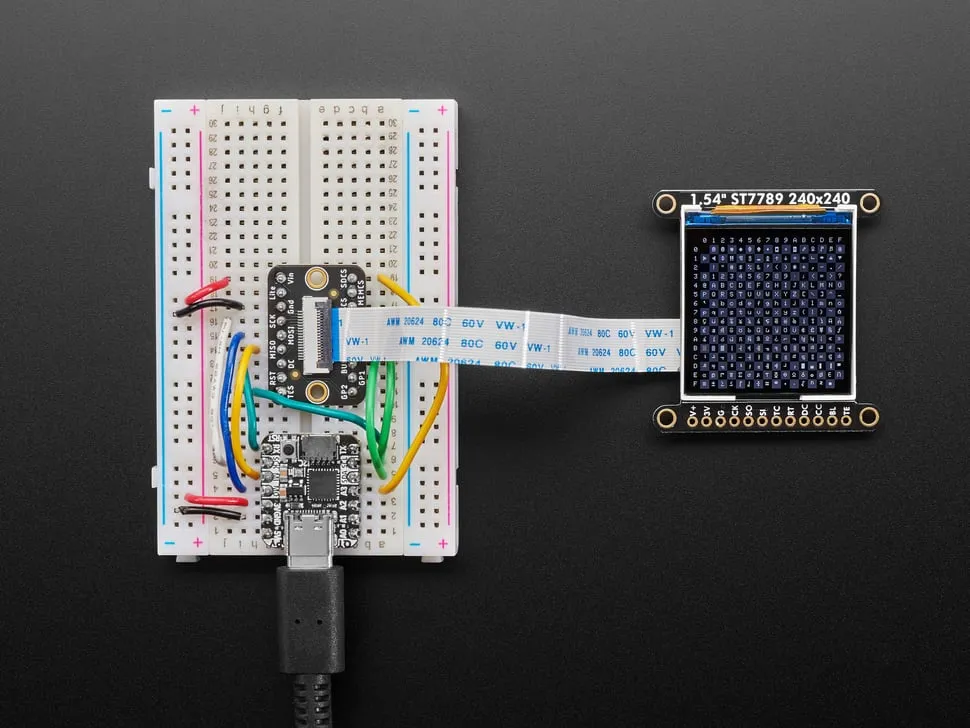

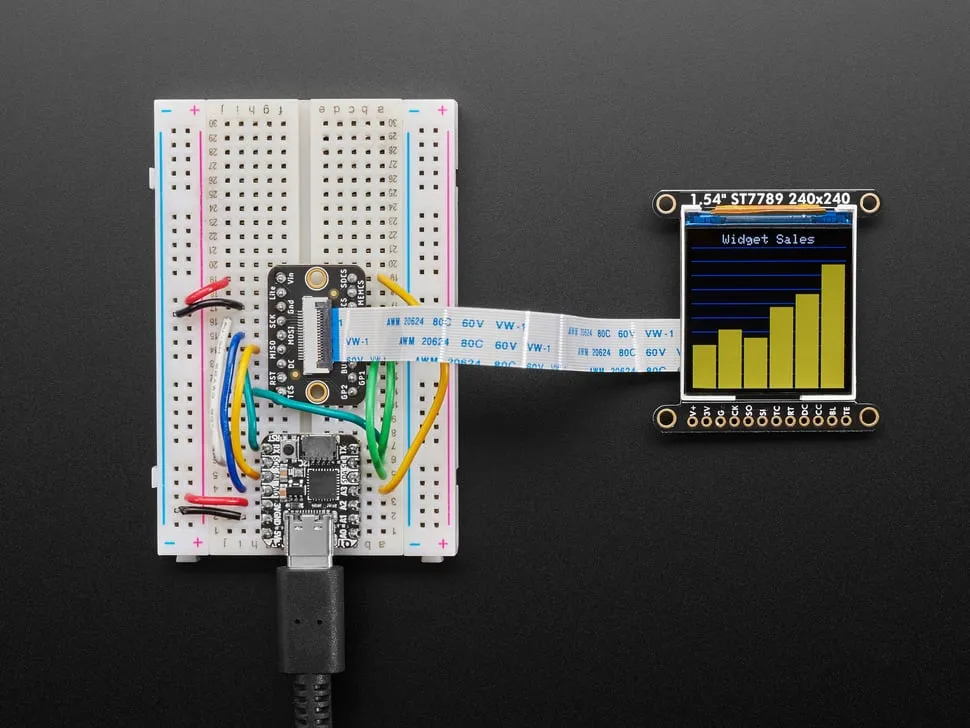

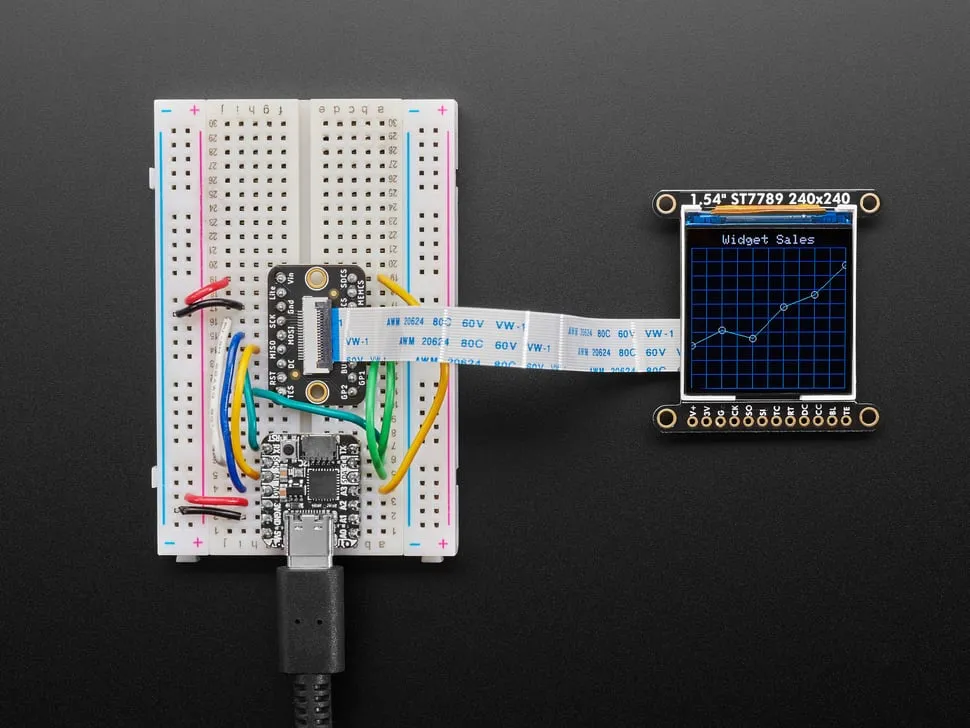

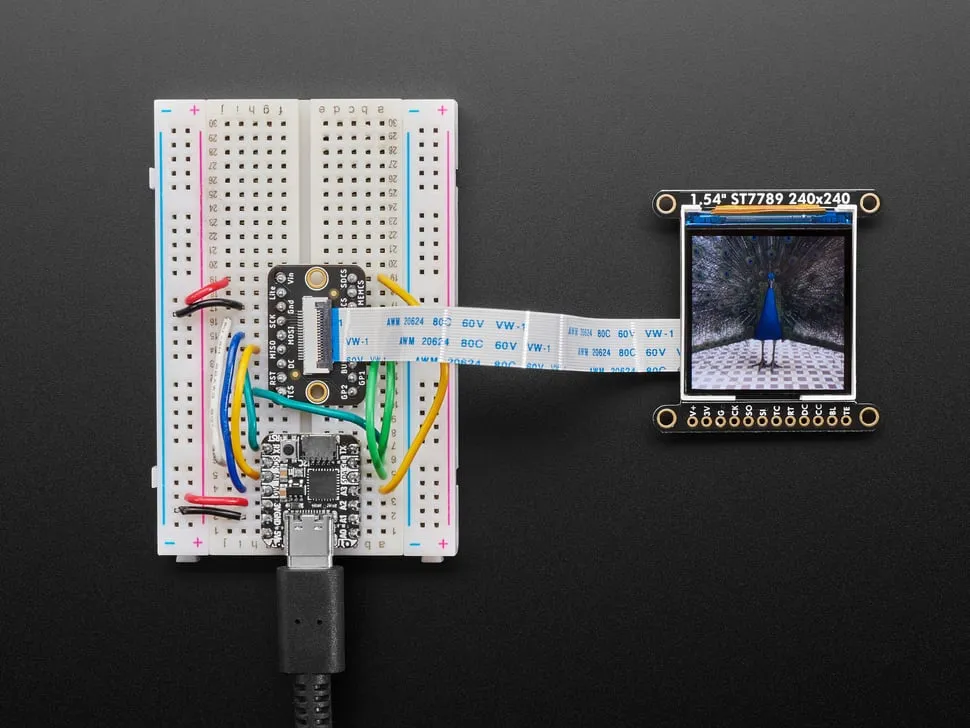

This display breakout also features a with flip-top connector. (not included!) to connect to all the GPIO pins, for when you want to skip the soldering.
TECHNICAL DETAILS
Specifications:
- 1.54" LCD TFT display
- Built-in microSD slot
- 1x16 header for easy breadboarding
- 4 x 0.1" / 2.5mm mounting holes in corners
- LCD screen dimensions: 32mm x 31mm / 1.3" x 1.2"
- Overall dimension: 43.7mm x 41.8mm x 5.5mm / 1.7" x 1.6" x 0.2"
- Mounting holes: 1.5" x 1.4"
- Weight (assembled): 9.8g
Please note! This display is designed original for smart watches and similar, where there's a glass over the screen. Without something gently holding the screen down, the backlight can eventually peel away from the TFT. (It's not destructive but it's unattractive) You can prevent this by, ideally, adding a plastic or glass cover/overlay. If using bare, try dabbing a touch of E6000 or similar craft glue on the thin side edges, or using a thin piece of tape to keep the front TFT attached to the backlight.
