AT 150 B5, Split Core AC Current Transformer, Self Powered, 150 Amp, Average RMS 5V output
AT 150 B5, Split Core AC Current Transformer, Self Powered, 150 Amp, Average RMS 5V output
  • AT 150 B5, Split Core AC Current Transformer, Self Powered, 150 Amp, Average RMS 5V output
Product Details ＋

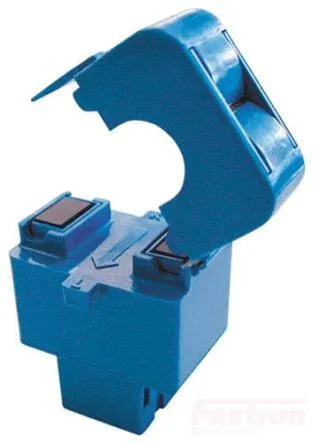

LEM AT 150 B5, Split Core AC Current Transformer, Self Powered, 150 Amp, Average RMS 5V output

Compact and versatile Split Core AC current sensor, 150 Amp Average RMS 0-5V output

Features

  • Split Core
  • Average RMS output
  • 0-5V voltage output
  • Busbar, or Din Rail Mounting
  • Isolated plastic case recognised according to UL94-V0

Advantages

  • Large aperture for cable up to ⌀ 16mm
  • High isolation between primary and secondary circuits
  • Easy installation
  • Cable Mount

Applications

Automation Systems

Analogue current reading for remote monitoring (e.g. Motor)

Data Loggers

Self Powered. Will not drain data logger batteries

Panel Meters

Simple connection displays power consumption

Specification
LEM Part Number AT 150 B5
Technology AC Current Transformer with Process Output
ROHS Yes
Supply Voltage Slef Powered
Nominal Current (RMS) 150 Amp
Maximum Measurement Current (RMS) 180 Amp
Output 0-5V (Average) RMS
Isolation 5kV (AC, 50Hz, 1 min)
Bandwidth 30-2000Hz
Mounting Style Din Rail mount or Busbar mount
Operating Temperature Range -10°C / 65°C
Accuracy 1.5%
Aperture ⌀ 16mm
Termination Style Spring Terminal Block (Female Included)
Approvals CE,UL,ROHS
Unit Weight 90g
Factory Pack Qty 6

Datasheet
