Name: BARTH 0850-0700
SKU: 1473078

Product Details ＋

Product Attribute	Attribute Value
Series

Overview

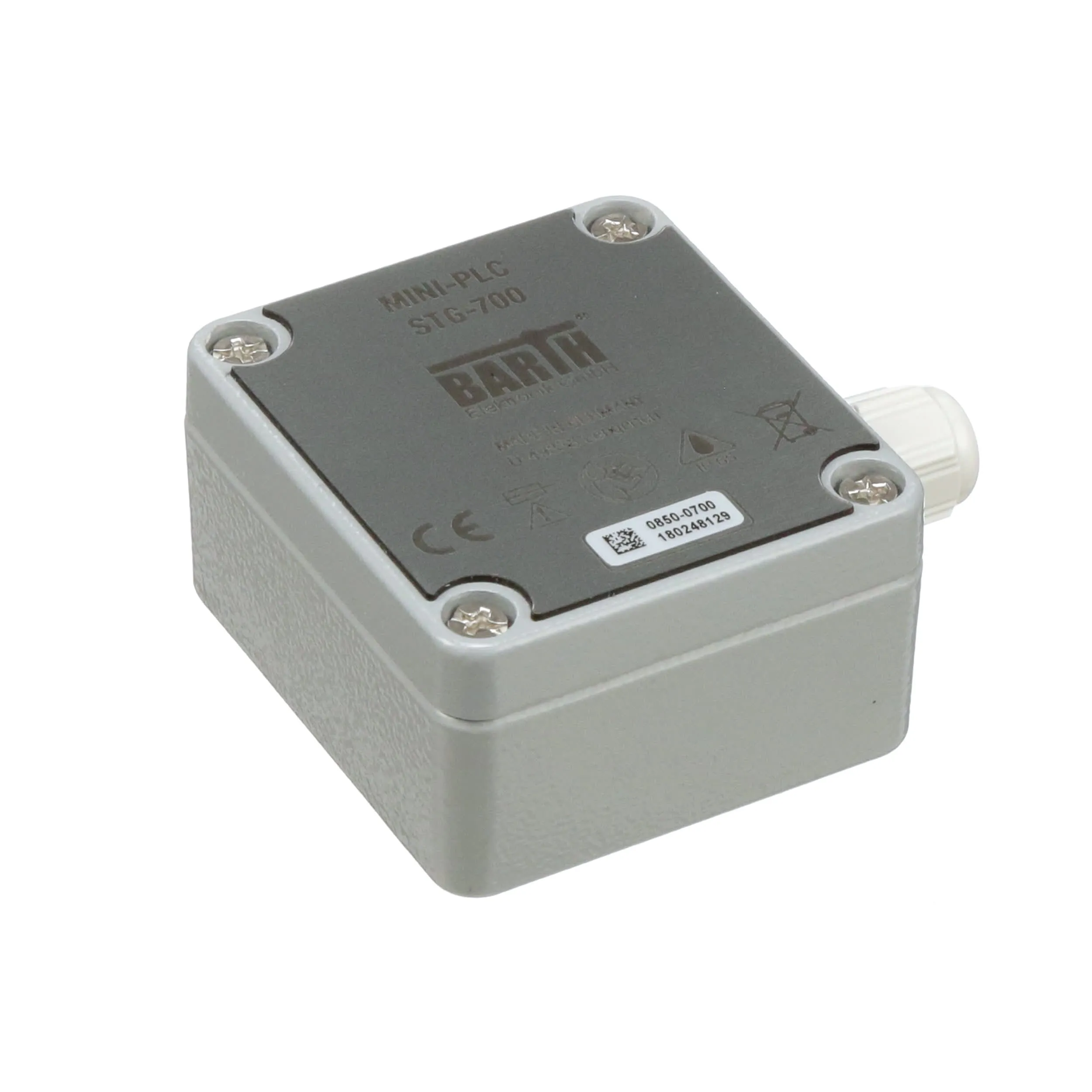

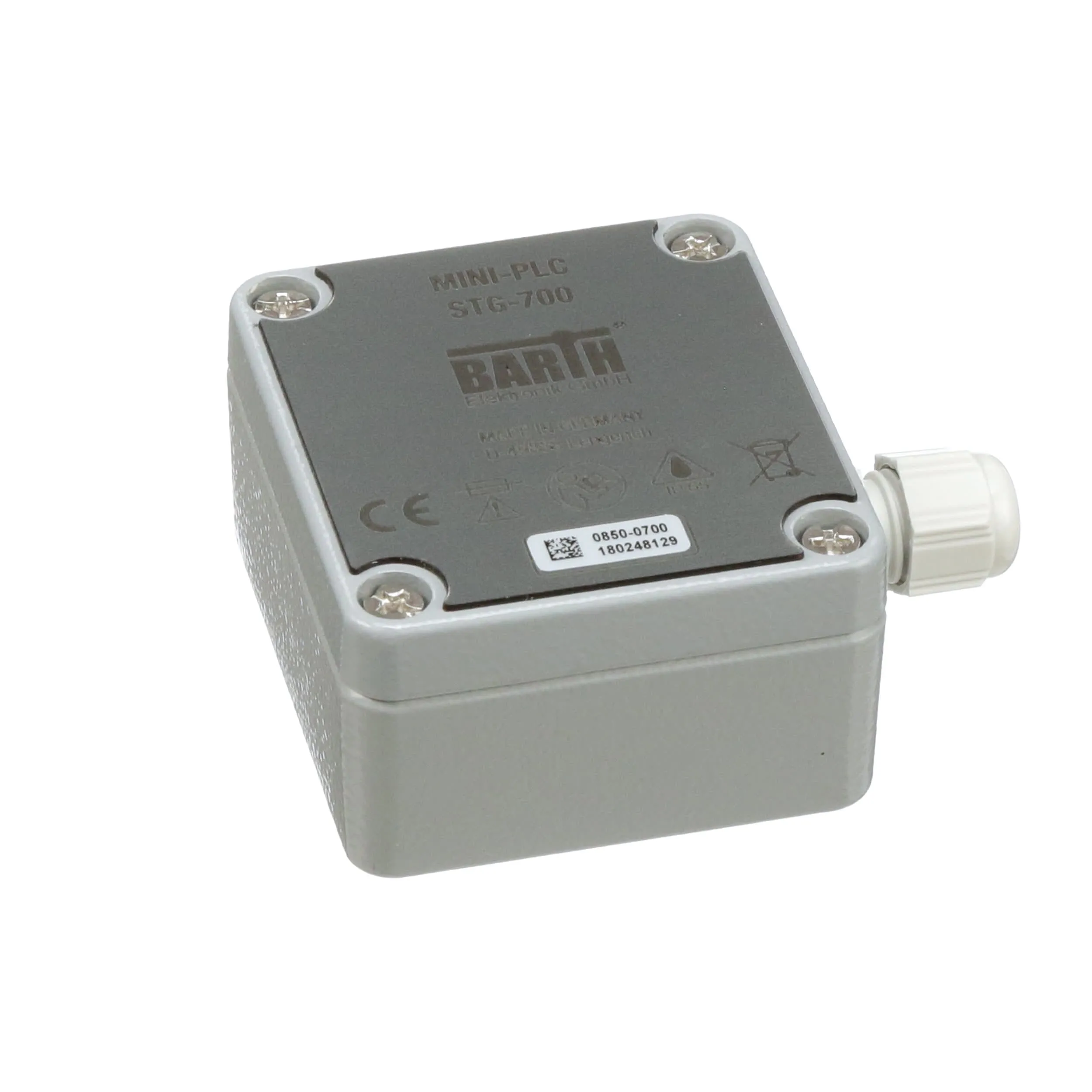

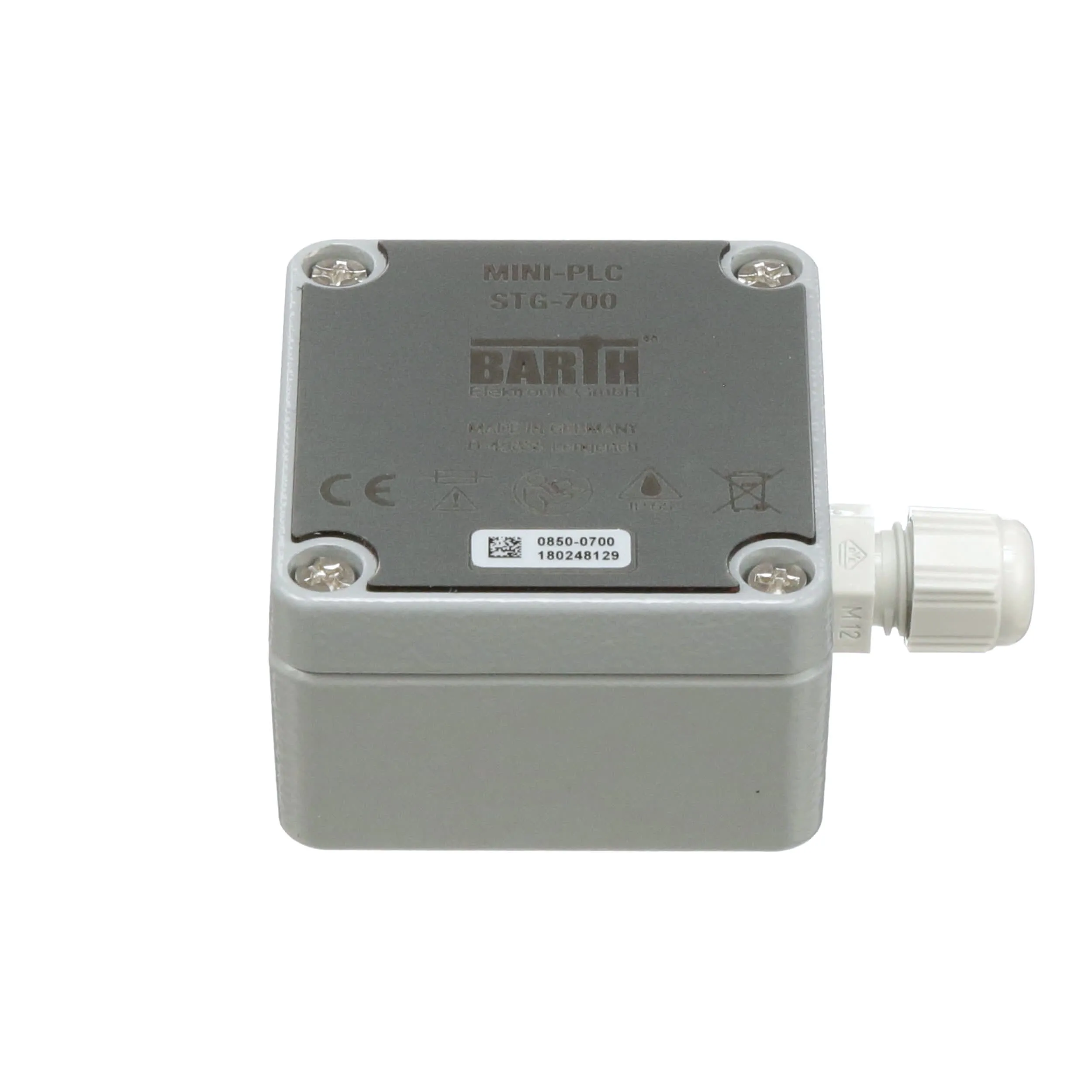

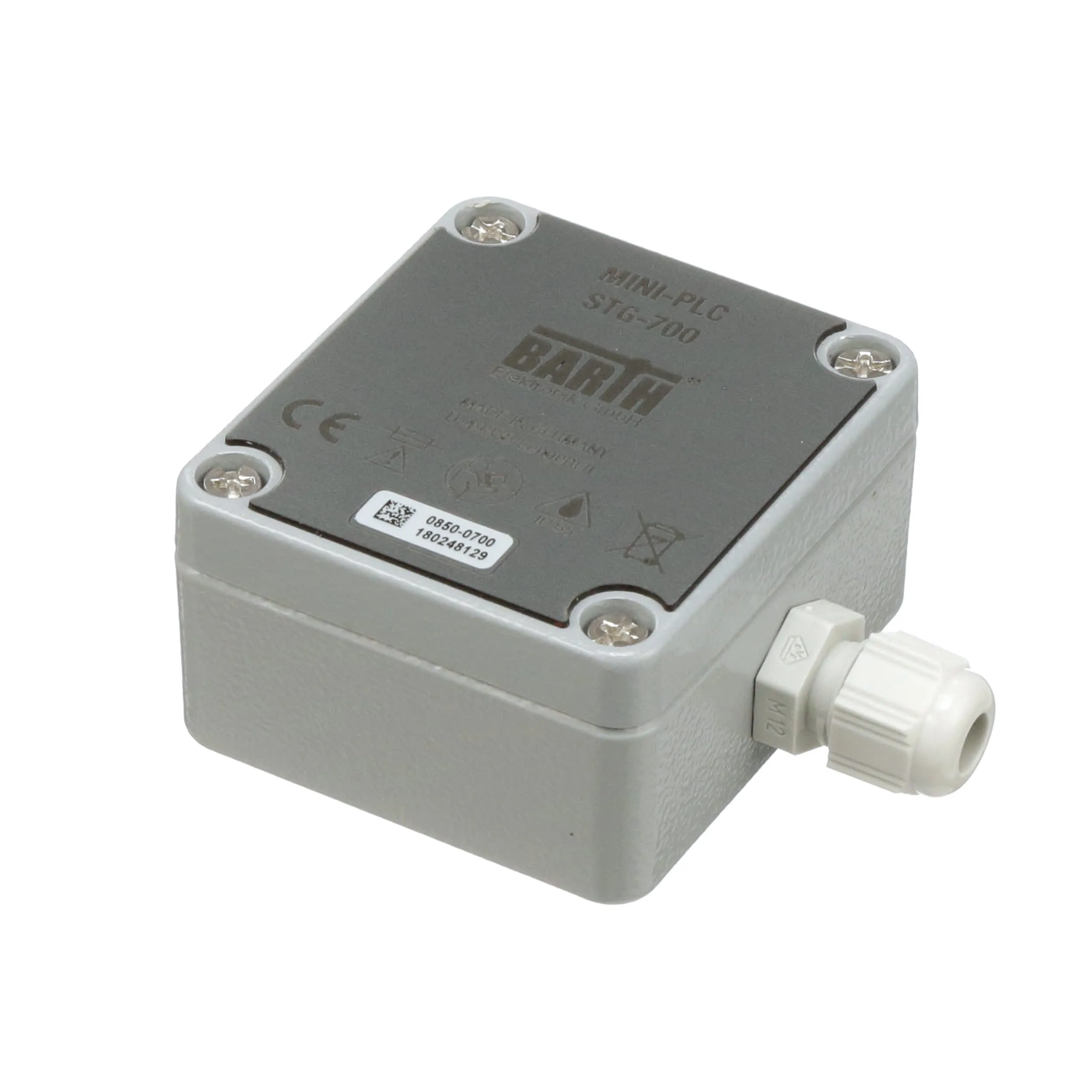

STG-700 STEP - Mini-PLC
The STG-700 STEP combines a powerful stepper motor controller with an ultra-compact Mini-PLC in a rugged splash proof Aluminum diecast housing. It features graphical programming, universal I/Os and a CAN interface. The Mini-PLC can control large format displays using a bipolar stepper motor converting an analogue or digital input signal to a matching motor angle.
Built in a fully integrated splash proof housing, the STG-700 STEP is ideal in applications within harsh environments.

Features and Benefits

Tiny CAN logic stepper motor controller

2 analogue inputs 0-30 V dc, 12-bit ADC

2 digital inputs up to 1 kHz

4 power outputs up to 1.5 A

Power stepper motor output 1.5 A

1 CAN 2.0A/B interface

Reliable solid-state outputs

Fail safe oscillator

Programmable status LED

TTL-232/USB connection to PC

Intuitive graphical programming capability

Wide operating voltage 78-32 V dc

Wide operating temperature range -40 to 50°C

Vibration resistant and rugged sealing

Aluminum diecast housing, IP66 rated

Applications
The outstanding features of the STG-700 STEP make it a suitable choice for various application fields such as industrial automation, process control, building automation and automotive technology.

Barth Mini-PLC
