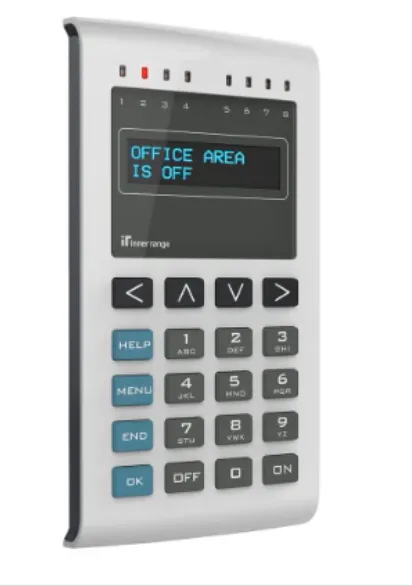

Inner Range EliteX OLED Keypad with SIFER Reader Add-on Module

The Inner Range EliteX OLED Keypad is a sleek, modern interface for controlling your Integriti system. Featuring a clear, easy-to-read OLED display, it enables users to manage security areas, control door access, review event activity, and control outputs. The 8 LED indicators display real-time system status, while the backlit rubberized keys provide a tactile, user-friendly experience.

With multi-language support and programmable features, the EliteX is versatile and installer-friendly. It can program the entire Integriti system directly from the keypad, streamlining maintenance and system adjustments.

Features:

• 2-line OLED display for clear operations
• Programmable backlight for various lighting environments
• Slimline design with a stylish neutral appearance
• Eight LEDs for real-time security system status
• Built-in panic key, duress option, and tamper monitoring
• Supports 12 languages for multi-lingual operations
• Compatible with Integriti, Inception, and Concept 4000 systems

Specifications:

• Input Voltage: 11-14V DC
• Current at 13.7V DC: 14.4mA (Backlight off), 42mA (max brightness)
• Aux Output: 18VDC, 500mA max (PTC protected)
• LED Indicators: 8
• Universal I/Os: 2
