Product Details
＋

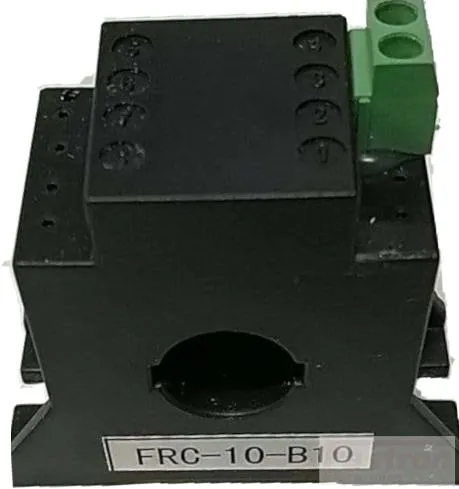

FRC-10-B10, AC Current Transducer, 10 Amp average RMS measurement, 0-10VDC output, 2% Accuracy, 14mm Aperture, or 3.5 x 15.5mm busbar, Self Powered, Panel Mount
Compact and low cost olid Core AC current sensor, selectable 10 Amp Average RMS 0-10 V output
Features
- Solid Core
- Average RMS output
- 0-10V voltage output
- Self Powered
- Busbar, or panel mounting
- Isolated plastic case recognised according to UL94-V0
Advantages
- Large aperture for cable up to ⌀14mm
- High isolation between primary and secondary circuits
- Easy installation
- DIN Rail Kit available
Applications
-Automation Systems
Analogue current reading for remote monitoring (e.g. Motor)
-Data Loggers
Self Powered. Will nto drain data logger batteries
-Panel Meters
Simple connection displays power consumption
Specification
| LEM Part Number | FRC-10-B10 |
| Technology | AC Current Transformer with Process Output |
| ROHS | Yes |
| Supply Voltage | Self Powered |
| Nominal Current (RMS DC) | 10 Amp |
| Maximum Measurement Current (Peak) | 12 Amp |
| Output | 0-10V Average RMS |

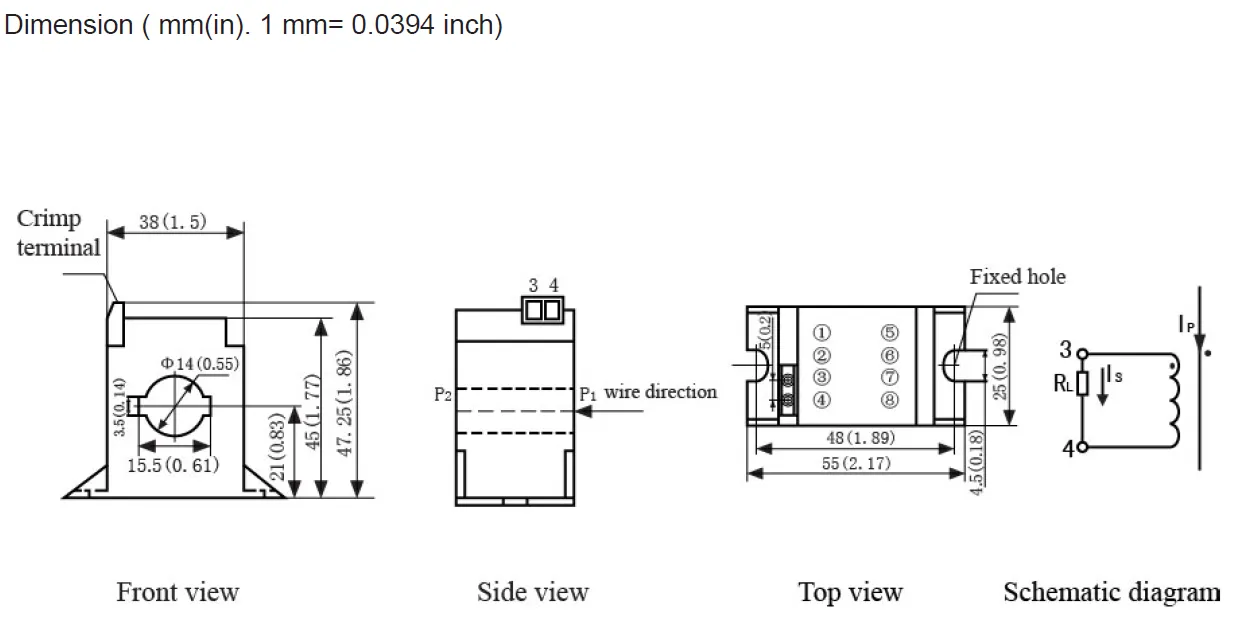

| Aperture | ⌀14mm, or 3.5 x 15.5mm busbar |
| Isolation | 6kV (AC, 50Hz, 1 min) |
| Bandwidth | 50-60Hz |
| Mounting Style | Panel Mount |
| Operating Temperature Range | -40°C / 85°C |
| Accuracy | 1% |
| Termination Style | Molex |
| Unit Weight | 65g |
| Factory Pack Qty | 6 |
