Product Details
＋

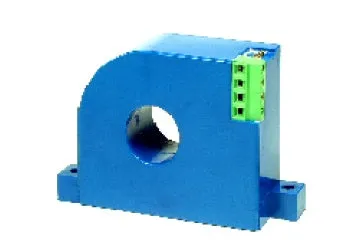

FTA-400-420-24, Hall Effect DC Current Transducer, 0-400 Amp , 4-20mA Unipolar Output, 24VDC supply, 21mm Aperture
Compact and versatile Split Core DC current sensor, 0-400 Amp , 4-20mA Unipolar Output
Features

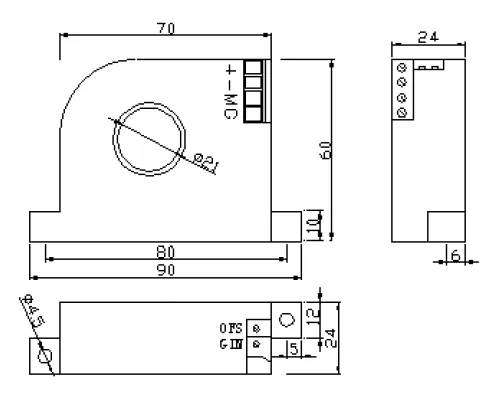

- ⌀21mm Aperture
- DC Unipolar Measurement
- 4-20mA Instantaneous output
- 120mS Response (for 0- 0-10mA ~0-10A AC) 10uS Response (0-0-400A ~0-400A AC)
- Panel mount
- Isolated plastic case recognised according to UL94-V0
Advantages
- High isolation between primary and secondary circuits
- Easy installation
- DIN Rail Kit available
Applications
-Automation Systems
Analogue current reading for remote monitoring (e.g. Motor)
-Data Loggers
Self Powered. Will not drain data logger batteries
-Panel Meters
Simple connection displays power consumption
Specification
| Fastron Part Number | FTA-400-420-24 |
| Technology | DC Hall Effect Current Transducer with Instant Output |
| Yes | |
| Supply Voltage | 24VDC |
| Nominal Current (RMS DC) | 0-400 Amp |
| Response Time | < 10uS |
| Output | Unipolar 4-20mA Instant |
| Isolation | 2.5kV (AC, 50Hz, 1 min) |
| Bandwidth | DC |
| Aperture | 20mm |
| Mounting Style | Panel Mount |
| Operating Temperature Range | -40°C / 85°C |
| Accuracy | 1% |

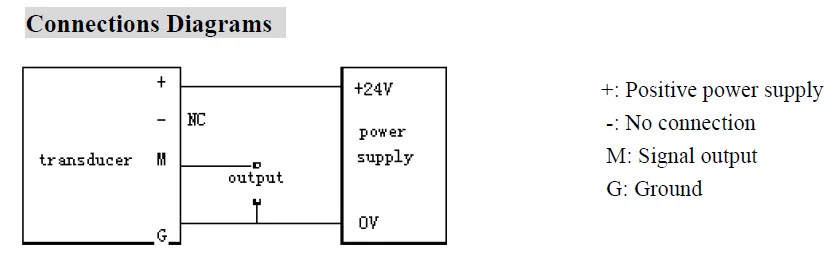

| Termination Style | Molex 4 Pin |
| Unit Weight | 300g |
| Factory Pack Qty | 6 |
