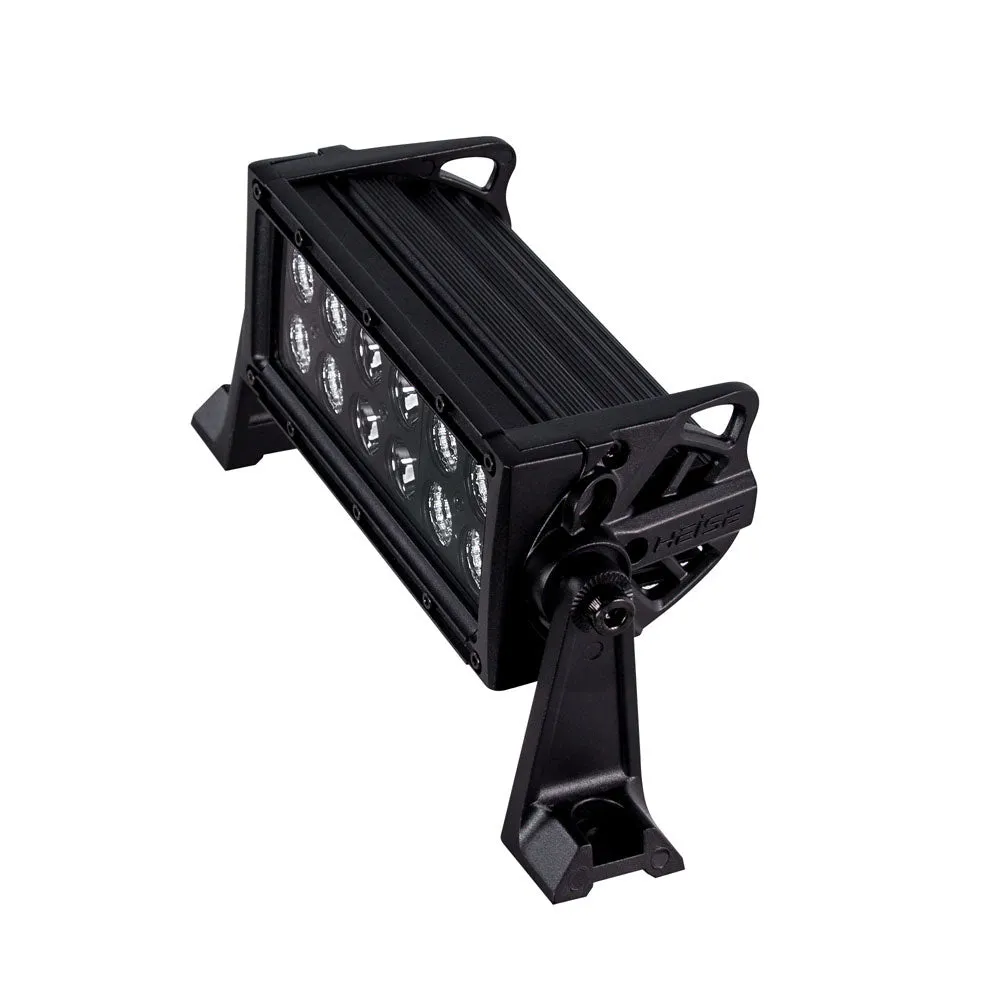

Dual Row Blackout LED Light Bar - 8"

SPECS

• Input Voltage: 10–30V DC
• Wattage: 36W (12–3W CREE LEDs)
• Raw Lumens: 2880
• LUX @ 10M: 215
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood(90°)/Spot(8°)

CONSTRUCTION

• Housing Material: Die–cast Aluminum Housing
• Housing Color: Black
• Membrane: Gore™
• Lens Material: PC
• Mounting Bracket: Die–cast Aluminum
• Hole Dimensions:

• Brackets turned inward – 7.25"
• Brackets turned outward – 9.5"
• Mounting Bolt Drill – .25"

• Height of Light Bar Itself: 3"
• Depth of Light Bar Itself: 3.50"
• Electronics: Integrated–Epoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: –40°C to 60°C
• Current Consumption: 1.9 amps @ 13.8 volts
• IP Rating: IP68
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Specifications:

• Beam Pattern: Spot-Flood Combo
• Length (Inches): 8"
• Housing: Black
• Voltage - Input Range (Volts): 10-30v
• Box Dimensions: 6"H x 6"W x 13"L WT: 3.4 lbs
• UPC: 086429312726
