Product Details

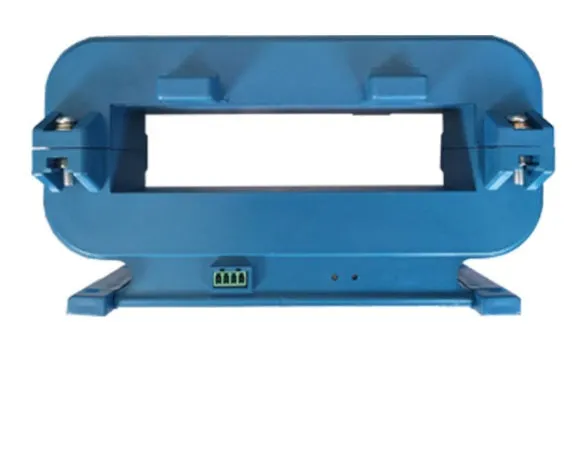

THST18244D-24-2000-RS485, Split Core Bipolar Hall Effect DC Current Transducer, 2000Amp DC, 24VDC Supply, 182 x 44 Square aperture, RS485 Modbus RTU Measurement Only

Compact and versatile Split Core Bipolar DC current sensor, /-2000 Amp DC, Modbus RS485output

Features

  • Modbus RTU (RS485)output

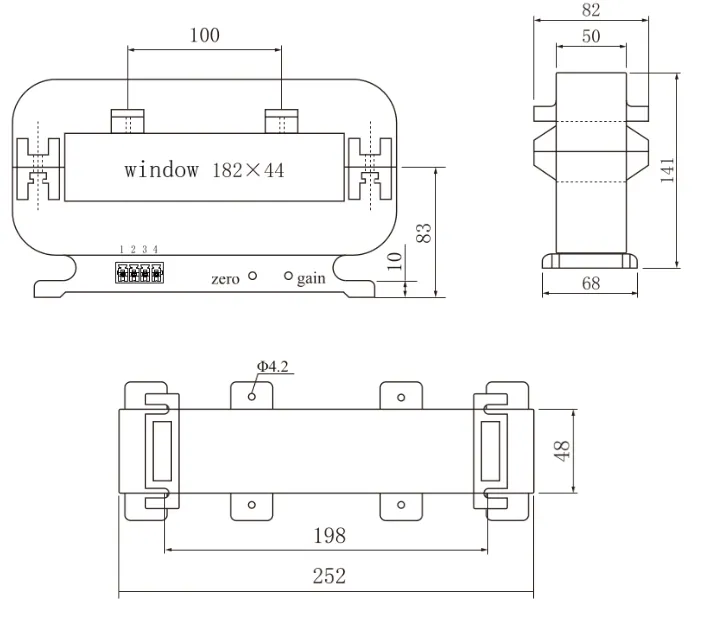

  • 182 x 44mm Aperture
  • Split Core
  • DC Measurement
  • Busbar, or DIN Rail Mounting
  • Isolated plastic case recognised according to UL94-V0

Advantages

  • High isolation between primary and secondary circuits
  • Easy installation
  • DIN Rail Mount

Applications

-Automation Systems

Analogue current reading for remote monitoring (e.g. Motor)

-Data Loggers

Self Powered. Will not drain data logger batteries

-Panel Meters

Simple connection displays power consumption


Specification
Fastron Part Number THST18244D-24-2000-RS485
Technology DC Hall Effect Current Transducer with Processoutput
ROHS Yes
Supply Voltage 24VDC
Nominal Current (DC) 0-2000 Amp
Response Time < 200mS
Output RS485 Modbus RTU
Isolation 2.5kV (AC, 50Hz, 1 min)
Bandwidth DC
Mounting Style DIN Rail Mount
Operating Temperature Range -40°C / 85°C
Accuracy 1%
Termination Style Elevator Screw
Unit Weight 3kg
Factory Pack Qty 6



Datasheet
THST18244D-24-2000-RS485, Split Core Bipolar Hall Effect DC Current Transducer, /-2000Amp DC, 24VDC Supply, 182 x 44 Square aperture, RS485 Modbus RTU Measurement Only
