Product Details
＋

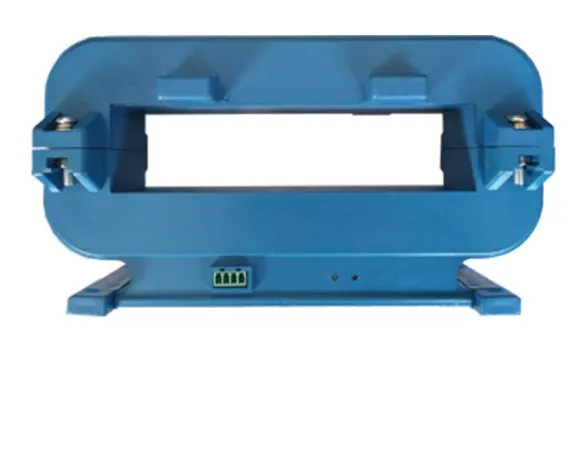

THST18244D-24-5000-RS485, Split Core Bipolar Hall Effect DC Current Transducer, 5000Amp DC, 24VDC Supply, 182 x 44mm Square aperture, RS485 Modbus RTU Measurement Only
Compact and versatile Split Core Bipolar DC current sensor, /-5000 Amp DC, Modbus RS485output
Features
- Modbus RTU (RS485)output

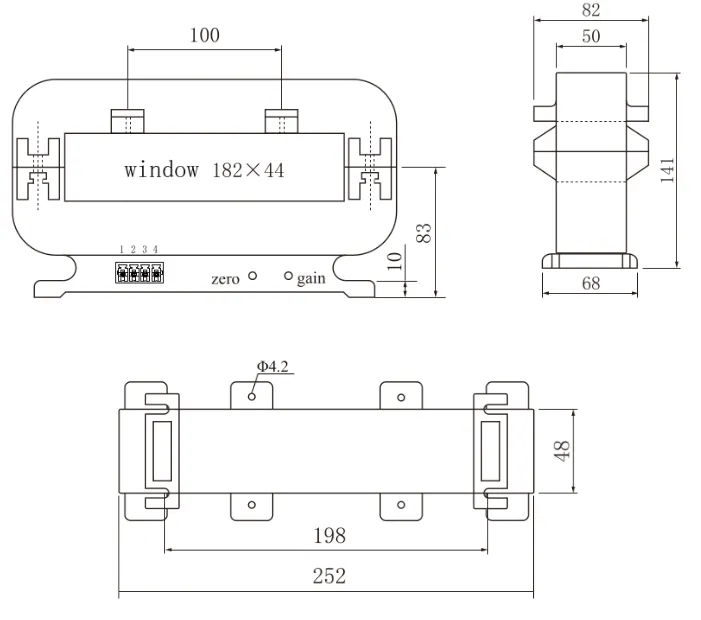

- 182 x 44mm Aperture
- Split Core
- DC Measurement
- Busbar, or DIN Rail Mounting
- Isolated plastic case recognised according to UL94-V0
Advantages
- High isolation between primary and secondary circuits
- Easy installation
- DIN Rail Mount
Applications
-Automation Systems
Analogue current reading for remote monitoring (e.g. Motor)
-Data Loggers
Self Powered. Will not drain data logger batteries
-Panel Meters
Simple connection displays power consumption
Specification
| Fastron Part Number | THST18244D-24-5000-RS485 |
| Technology | DC Hall Effect Current Transducer with Processoutput |
| ROHS | Yes |
| Supply Voltage | 24VDC |
| Nominal Current (DC) | 0-5000 Amp |
| Response Time | < 200mS |
| Output | RS485 Modbus RTU |
| Isolation | 2.5kV (AC, 50Hz, 1 min) |
| Bandwidth | DC |
| Mounting Style | DIN Rail Mount |
| Operating Temperature Range | -40°C / 85°C |
| Accuracy | 1% |
| Termination Style | Elevator Screw |
| Unit Weight | 3kg |
| Factory Pack Qty | 6 |
