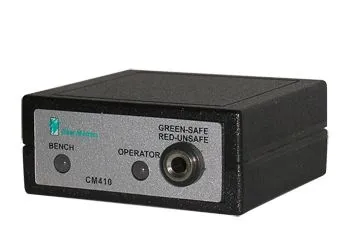

The CM410 single wire monitor continuously checks the total ground loop, including the operator, the wrist band, the coil cord and workstation ground. Continuously verifying the integrity of the ground system is critical to an effective ESD protection program and eliminates the time-consuming task of testing wrist straps before each shift. The systems are compatible with most single wire wrist straps. This is the simplest, and most cost-effective way to ensure a wrist strap is continually working. An audible alarm and light will signal a failure.

Calibration:

The CM410 constant monitors are factory calibrated and are designed to be adjustment free. Annual calibration is not necessary. If a quality program requires testing, verification tools that simulate a functional and non-functional wrist strap are available to verify that the monitor is functionality is recommended to verify proper working order with the CM410PV periodic verification unit at least once per year.

Additional information

• Weight: 1 lbs.
• Dimensions: 2.3" x 1" x 2.4"
• Type: Single Wire
• Capabilities: Monitors 1 Wrist Strap and 1 Worksurface
• Voltage: 120V AC
